Character Creator Menu Controls

Menu Controls are UI buttons that provide core user actions such as saving, closing, randomizing and reseting a character.

The included prefabs can be quickly added to a Character Creation Menu or replaced with custom implementations using the CCM Relay component.

Menu Controls Example

Included Actions

Menu Controls provide the following actions:

  • Close or exit the Character Creation Menu.
  • Save or confirm character changes.
  • Reset the character to its original state.
  • Randomize the characters appearance.

Prefabs

Location: Prefabs > Character Creator > Modules > Menu Controls.

Ready-made prefabs are included and can be used without any additional setup. Drag and drop them directly into your Character Creation Menu hierarchy and they're immediately ready to be used.

Variants

Within the prefabs folder you'll see 4 variation folders. The only difference between variants is the sprites used.

Available prefabs:

  1. Menu Controls [Back, Save, Randomize, Reset]
  2. Menu Controls [Back, Save, Randomize]
  3. Menu Controls [Back, Save]

The brackets dictate what actions are included in the prefab.

Generic Buttons

Inside the same prefabs directory, the Generic Buttons folder contains individual button prefabs with no default assigned functionality.

Each prefab includes:

  • A Unity Button component
  • A CCM Relay component

When using the generic button prefabs, add an On Click event to the button and assign the CCM Relay component. You can then call different methods on the CCM Relay component to perform actions such as saving changes or exiting the menu.

CCM Relay Component

The CCM Relay (Character Creation Menu Relay) component acts as a bridge between the UI and the Character Creation Menu system.

It forwards button events to the active Character Creation Menu Manager instance, making it easy to setup simple functionality without writing any code.

Usage

To create a custom button using the CCM Relay:

  1. Add the CCM Relay component to a GameObject
  2. Add the Unity Button component
  3. Assign the Buttons On Click event to call a method on the CCM Relay component

Example

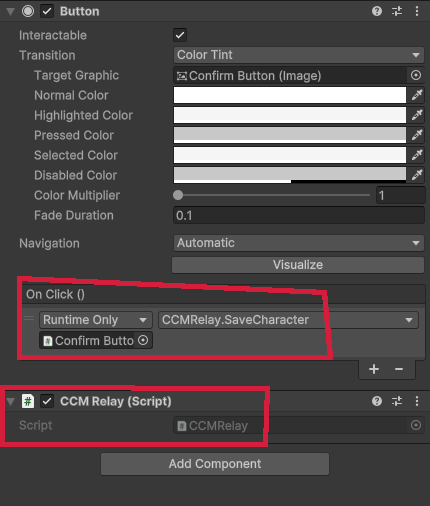

CCM Relay Usage Example

CCM Relay Methods

The following public methods are available on the CCM Relay component:

DisableMenu()

Closes the disables the Character Creation Menu.

SaveCharacter()

Saves changes made to the currently edited character.

RandomizeEntireCharacter()

Randomizes all character layers of the character currently being edited.

ResetCharacter()

Restores the character to the state it was in when the Character Creation Menu was first opened.

CCM Save Character Button Component

The CCM Save Character Button component provides a ready-to-use save button for your Character Creation Menu. It automatically handles saving the current character and manages its interactable state based on whether there are unsaved changes.

Setup

  1. Create a new GameObject.
  2. Add an Image component.
  3. Add the CCM Save Character Button component.
    • The component inherits from Unity's Button component, so it provides all of the same properties and functionality.
  4. Assign the Target Graphic and configure the button's Transition settings as you would with any other Unity button.

Behavior

  • Disable When No Changes - When enabled, the button is automatically disabled if no changes have been made to the character since it was last saved.
  • An On Click event is not required. When clicked, the button automatically saves the current character.
  • You can still add On Click event actions if you want the button to perform additional actions after saving. For example, you could use an On Click event that calls the DisableMenu method on a CCM Relay to close the Character Creation Menu after the character has been saved.
